Auto shaping and profile sander

Door panel sander

(This machine is suitable for sanding straight workpieces with shapes.angles angles and straight edges.)

Features:

• The 1st cutter spindle make with jump head, and the turning direction is as counter clockwise rotation.

• The 2nd cutter spindle make with fix head, and the turning direction is as clockwise rotation.

• The cutter head can be adjusted forward/backward and up/down.

• Workpiece is feed with conveyor.

• Auxiliary roller may be extended up to 3 feet wide for large work support.

• The unit can be equipped with brush wheel for through cleaning of burrs after sanding.

• Precision sensor control prevents the sanding from cornering in the front and rear sections.

• Adopted is the automatic speed regulator to counter balance sanding tension; sanding pressure is controlled by air pressure valve to stabilize uneven sanding surface.

• Adopted is the automatic length tracking for high precision processing, free from adjustment under speed change, (far superior than the conventional timer that should be adjusted to speed change.)

Specifications:

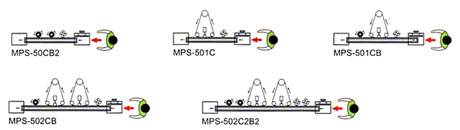

Model		MPS-501C	MPS-501CB	MPS-502CB	MPS-502C2B2
workpiece range	width	100~1800 mm	100~1800 mm	100~1800 mm	100~1800 mm
	thickness	5~100 mm	5~100 mm	5~100 mm	5~100 mm
	length	100~∞ mm	100~∞ mm	100~∞ mm	100~∞ mm
cutter shaft dimension		Ø25.4 x 120L mm	Ø25.4 x 120L mm	Ø25.4 x 120L mm	Ø25.4 x 120L mm
brush dimension			Ø25.4xØ200x100Lmm	Ø25.4xØ200x100Lmm	Ø25.4xØ200x100Lmm
sanding belt dimension		40~100(W)x2515 mm	40~100(W)x2515 mm	40~100(W)x2515 mm	40~100(W)x2515 mm
sanding motor		2HPx1(200~1200RPM)	2HPx1(200~1200RPM)	2HPx2(200~1200RPM)	2HPx2(200~1200RPM)
elevation motor		60W x 1	60W x 1	60W x 2	60W x 2
sanding belt tilt motor		60W x 1	60W x 1	60W x 2	60W x 2
sanding belt oscillating motor		15W x 1	15W x 1	15W x 2	15W x 2
cutter motor		7.5HP/2P x 1	7.5HP/2P x 1	7.5HP/2P x 1	7.5HP/2P x 2
brush motor			1HP/4P x 1	1HP/4P x 1	1HP/4P x 2
feed motor		1HP(18~63RPM)	1HP(18~63RPM)	1HP(18~63RPM)	2HP(18~63RPM)
cutter motor speed		50HZ 7500 RPM	50HZ 7500 RPM	50HZ 7500 RPM	50HZ 7500 RPM
brush motor speed			50HZ 1400 RPM	50HZ 1400 RPM	50HZ 1400 RPM
feed speed (variable speed)		6.0~20 M/min	6.0~20 M/min	6.0~20 M/min	6.0~20 M/min
sanding belt speed(variablespeed)		113~680 M/min	113~680 M/min	113~680 M/min	113~680 M/min
sanding belt tilt angle		-15°~ +90°	-15°~ +90°	15°~ +90°	-15°~ +90°
conveyer width		110 mm	110 mm	110 mm	110 mm
conveyer height		880 mm	880 mm	880 mm	880 mm
machine measurement		200 x 100 x 185cm	245 x 100 x 185 cm	335 x 100 x 185 cm	395 x 100 x 185 cm
packing measurement		208 x 108 x200 cm	253 x 108 x 200 cm	340 x 108 x 200cm	403 x 108 x 200 cm
N.W/G.W		790 / 1030 kgs	1200 / 1500 kgs	1500 / 1680 kgs	2100 / 2600 kgs
