(This machine is suitable for sanding of shaped or curved work pieces of straight materials.)

Features :

• Workpiece is feed with conveyor.

• Auxiliary roller may be extended up to 3 feet wide for large work support.

• Sanding head can be adjusted forward/backward, up/down, and tilted - 15ﾟ~ +90ﾟ.

• Precision sensor control prevents the sanding from cornering in the front and rear sections.

• Adopted is the automatic speed regulator to counter balance sanding tension; sanding pressure is controlled by air pressure valve to stabilize uneven sanding surface.

• Adopted is the automatic length tracking for high precision processing, free from adjustment under speed change, (far superior than the conventional timer that should be adjusted to speed change.)

Specifications:

Model		MPS-501	MPS-502	MPS-503
sanding range	width	25~1800 mm	25~1800 mm	25~1800 mm
	thickness	5~100 mm	5~100 mm	5~100 mm
	length	100~∞ mm	100~∞ mm	100~∞ mm
sanding motor		2HP x 1 (200~1200RPM)	2HP x 2 (200~1200RPM)	2HP x 3 (200~1200RPM)
feed motor		1/2HP (18~63RPM)	1HP (18~63RPM)	2HP (18~63RPM)
elevation motor		60W x 1	60W x 2	60W x 3
sanding belt tilt motor		60W x 1	60W x 2	60W x 3
sanding belt oscillating motor		15W x 1	15W x 2	15W x 3
sanding belt speed (variable speed)		113~680 M/min	113~680 M/min	113~680 M/min
feed speed (variable speed)		6.0~20 M/min	6.0~20 M/min	6.0~20 M/min
sanding belt size		40~100(W) x 2515(L) mm	40~100(W) x 2515(L) mm	40~100(W) x 2515(L) mm
sanding belt tilt angle		-15°~ +90°	-15°~ +90°	15°~ +90°
conveyer width		110 mm	110 mm	110 mm
conveyer height		880 mm	880 mm	880 mm
machine measurement (cm)		170 x 100 x 185	245 x 100 x 185	335 x 100 x 185
packing measurement (cm)		176 x 108 x 200	252 x 108 x 200	343 x 108 x 200
N.W/G.W		670/750 kgs	1270/1560 kgs	1890/2250 kgs

Features:

• Workpiece is feed with conveyor.

• Auxiliary roller may be extended up to 3 feet wide for large work support.

• The unit can be equipped with brush wheel for through cleaning of burrs after sanding.

• Sanding head can be adjusted forward/backward, up/down, and tilted - 15ﾟ~ +90ﾟ.

• Precision sensor control prevents the sanding from cornering in the front and rear sections.

• Adopted is the automatic speed regulator to counter balance sanding tension; sanding pressure is controlled by air pressure valve to stabilize uneven sanding surface.

Specifications:

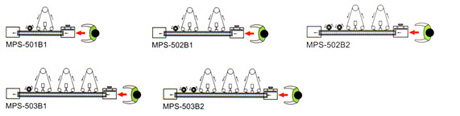

Model		MPS-501B1	MPS-502B1	MPS-502B2	MPS-503B1	MPS-503B2
sanding range	width	25~1800 mm	25~1800 mm	25~1800 mm	25~1800 mm	25~1800 mm
	thickness	5~100 mm	5~100 mm	5~100 mm	5~100 mm	5~100 mm
	length	100~∞ mm	100~∞ mm	100~∞ mm	100~∞ mm	100~∞ mm
sanding motor		2HP x 1(200~1200RPM)	2HP x 2(200~1200RPM)	2HP x 2(200~1200RPM)	2HP x 3(200~1200RPM)	2HP x 3(200~1200RPM)
feed motor		1/2HP (18~63RPM)	1HP (18~63RPM)	1HP (18~63RPM)	2HP (18~63RPM)	2HP (18~63RPM)
brush motor		1HP/4P x 1	1HP/4P x 1	1HP/4P x 2	1HP/4P x 1	1HP/4P x 2
elevation seat motor		60W x 1	60W x 2	60W x 2	60W x 3	60W x 3
sanding belt tilt motor		60W x 1	60W x 2	60W x 2	60W x 3	60W x 3
sanding belt oscillating motor		15W x 1	15W x 2	15W x 2	15W x 3	15W x 3
sanding belt speed (variable speed)		113~680 M/min	113~680 M/min	113~680 M/min	113~680 M/min	113~680 M/min
feed speed (various speed)		6.0~20 M/min	6.0~20 M/min	6.0~20 M/min	6.0~20 M/min	6.0~20 M/min
sanding belt size		40~100(W) x 2515(L) mm	40~100(W) x 2515(L) mm	40~100(W) x 2515(L) mm	40~100(W) x 2515(L) mm	40~100(W) x 2515(L) mm
brush dimension		Ø25.4 x Ø200 x 100L mm	Ø25.4 x Ø200 x 100L mm	Ø25.4 x Ø200 x 100L mm	Ø25.4 x Ø200 x 100L mm	Ø25.4 x Ø200 x 100L mm
sanding belt tilt angle		-15ﾟ~ +90ﾟ	-15ﾟ~ +90ﾟ	15ﾟ~ +90ﾟ	-15ﾟ~ +90ﾟ	-15ﾟ~ +90ﾟ
brush tilt angle		0ﾟ~ +90ﾟ	0ﾟ~ +90ﾟ	0ﾟ~ +90ﾟ	0ﾟ~ +90ﾟ	0ﾟ~ +90ﾟ
conveyer width		110 mm	110 mm	110 mm	110 mm	110 mm
conveyer height		880 mm	880 mm	880 mm	880 mm	880 mm
machine measurement (cm)		200 x 100 x 185	275 x 100 x 185	320 x 100 x 185	365 x 100 x 185	410 x 100 x 185
packing measurement (cm)		206 x 108 x 200	282 x 108 x 200	328 x 108 x 200	373 x 108 x 200	418 x 108 x 200
N.W/G.W		740/970 kgs	1360/1590 kgs	1450/1620 kgs	1980/2340 kgs	2070/2370 kgs
