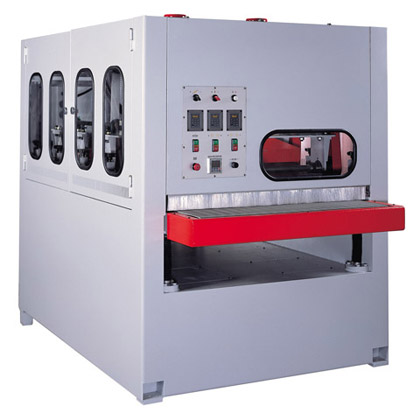

the
polisher have both polishing
and cleaning function |
|
|
| |
Features
: |
1.
Two different
machine width
sizes for
choice:1000mm
and 1300mm.
|
| 2. |
This
machine
is most
suitable
for the
sanding
of materials
with irregular
surface
such as
door panel
|
| |
and
door frame,
etc..
|
|
3.
Oscillating
sanding wheel
design for
left/right
vibration.
|
4.
Feeding speed:
Variable speed
(controlled
by frequency
converter).
|
5.
The speed
of polishing
wheel: Variable
speed. (controlled
by frequency
converter).
|
6.
Maximum elevation
of polishing
wheel: 60mm.
|
7.
Maximum elevation
of conveyor
table: 150mm.
|
8.
The elevation
of conveyor
table is numerically
controlled
for high precision
positioning.
|
|
| |
|

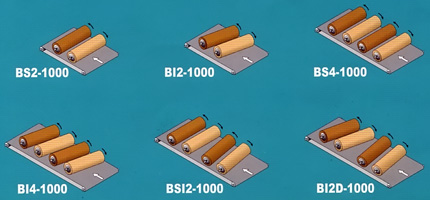

Model |
BS2-1000 |
BI2-1000 |
BS4-1000 |
BI4-1000 |
BSI2-1000 |
BI2D-1000 |
Max.
Workpiece
range(mm) |
Width |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
Height |
150 |
150
|
150
|
150
|
150
|
150
|
Brush
motor |
2HPx2 |
2HPx2
|
2HPx4
|
2HPx4
|
2HPx4
|
2HPx4
|
Feed
motor |
2HPx1
|
2HPx1
|
2HPx1
|
2HPx1
|
2HPx1
|
2HPx1
|
Conveyor
table elevation motor |
1/2HPx1 |
1/2HPx1
|
1/2HPx1
|
1/2HPx1
|
1/2HPx1
|
1/2HPx1
|
Brush
elevation motor |
1/2HPx1 |
1/2HPx1
|
1/2HPx1
|
1/2HPx1
|
1/2HPx1
|
1/2HPx1
|
Oscillation
motor |
1/4
HPx1 |
1/4
HPx1 |
1/2HPx1 |
1/4
HPx2 |
1/4
HPx2 |
1/4
HPx2 |
Feed
speed |
0~23
M/min |
0~23
M/min |
0~23
M/min |
0~23
M/min |
0~23
M/min |
0~23
M/min |
Brush
speed |
600~1000RPM |
600~1000RPM
|
600~1000RPM
|
600~1000RPM
|
600~1000RPM
|
600~1000RPM
|
Brush
size (mm) |
Ø40xØ310x
1000L |
Ø40xØ310x
1000L |
Ø40xØ310x
1000L |
Ø40xØ310x
1000L |
Ø40xØ310x
1000L |
Ø40xØ310x
1000L |
Conveying
belt width |
1100
mm |
1100
mm |
1100
mm |
1100
mm |
1100
mm |
1100
mm |
Machine
size / (cm)
|
180x158x195
|
205x158x195
|
262x158x195
|
287x158x195
|
287x158x195
|
310x158x195
|
| Packing
size / (cm) |
190x168
x210 |
215x168x210 |
272x168x210 |
297x168x210 |
297x168x210 |
320x168x210 |
N.W.
/ G.W. (kg) |
1200/1350 |
1350/1550 |
3700/3900 |
3900/4100 |
3900/4100 |
4100/4300 |
|
|
|
|
|
 |
|
|
