- Through motor-driven reducer, new belt oscillation design always retains the belt at its position, without straying.
- Heavy-duty design with powerful driving motor offers high efficiency in mass production.
- Design of slant and elevating frontal and lateral worktables is easy for sanding.
- Lateral table can be used for sanding the curve style work pieces.
- The sand belt can be easily and quickly replaced by the screw nut. Its tightness can also be adjusted any time for higher stability.
- Elevating the work table can be quick and easy with the hand wheel which is driven by worm gear.
|
|
|
 |
|
| |
- Single worktable : for sanding the edge of workpiece.
- Side worktable : for sanding the curve of workpiece.
|
|
|
| |
- Double worktable : use the bilateral worktable for sanding to increase the working efficiency.
- Side worktable : for sanding the curve of workpiece.
|
|
|
|
|
| |
 |

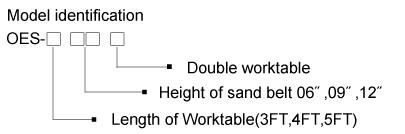

Model series：
OES-306 / OES-309 / OES-409 / OES-412 / OES-509 / OES-512
OES-306D / OES-309D / OES-409D / OES-412D / OES-509D / OES-512D |
|
|
Model |
OES-306 |
OES-306D |
OES-409 |
OES-409D |
OES-509 |
OES-509D |
OES-309 |
OES-309D |
OES-412 |
OES-412D |
OES-512 |
OES-512D |
Sanding motor |
3HP |
5HP |
5HP |
7.5HP |
5HP |
7.5HP |
7.5HP |
7.5HP |
10HP |
Oscillation stroke |
12㎜ |
Sanding belt size(W×L)
|
6〞×109〞 |
6〞×113〞 |
9〞×134〞 |
9〞×138〞 |
9〞×162〞 |
9〞×166〞 |
9〞×109〞 |
9〞×113〞 |
12〞×134〞 |
12〞×138〞 |
12〞×162〞 |
12〞×166〞 |
Sanding belt speed |
50HZ 820RPM
60HZ 970RPM
|
Worktable dimension/ front(㎜) |
265×910 |
265×910 |
265×1210 |
265×1210 |
265×1545 |
265×1545 |
Worktable dimension/ side(㎜) |
350×420 |
350×450 |
350×420 |
350×450 |
350×420 |
350×450 |
Machine size(㎝) |
159×68×114 |
161×78×114 |
191×68×122 |
193×78×122 |
228×68×122 |
230×78×122 |
159×68×122 |
161×78×122 |
191×68×129 |
193×78×129 |
228×68×129 |
230×78×129 |
Packing size(㎝) |
169×78×134 |
171×88×134 |
201×78×142 |
203×88×142 |
238×78×142 |
240×88×142 |
169×78×142 |
171×88×142 |
201×78×150 |
203×88×150 |
238×78×150 |
240×88×150 |
N.W / G.W (kgs) |
270/350 |
335/425 |
340/450 |
415/535 |
425/540 |
500/625 |
275/355 |
350/440 |
350/460 |
435/555 |
440/555 |
525/650 |
|
|
| |
| |
