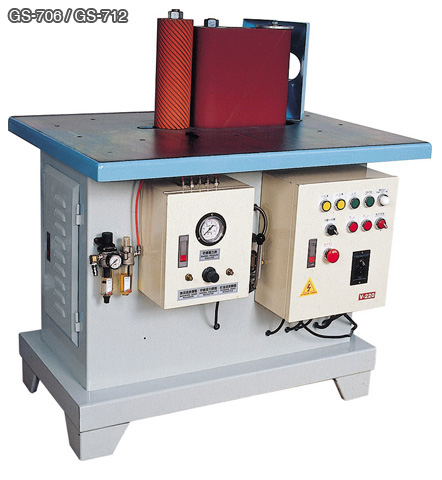

(This machine
is suitable for internal or external
sanding of straight, curved or cylindrical
work pieces.)
|
 |
Features
:. |
| 1. |
Material is
anchored by
air pressure
valve to ensure
a constant sanding
|
| |
pressure
by working
with buffer
system. |
| 2. |
Sanding belt
oscillates
to enhance
the smoothness
from sanding. |
| 3. |
Feeding speed
is controlled
by variable
speed. |
| |
|
|
|
Model |
GS-706 |
GS-712 |
sanding
range |
0~100(W)
x 145(H) mm |
0~100(W)
x 295(H) mm |
sanding
motor |
1
HP |
2
HP |
feed
driven motor |
1/8
HP |
1/8
HP |
spindle
speed |
50HZ
580/830/1250/1900 RPM |
50HZ
580/830/1250/1900 RPM |
sanding
belt speed |
180/260/390/580
M/min |
180/260/390/580
M/min |
feed
speed |
5~20
M/min |
5~20
M/min |
sponge
wheel size |
Ø25.4
x Ø100 x 152(L)
mm |
Ø25.4
x Ø100 x 305(L)
mm |
sanding
belt size |
152(W)
x 635~762(L) mm |
305(W)
x 762 (L) mm |
worktable
dimension |
730
x 1000 mm |
730
x 1000 mm |
machine
measurement |
102
x 74 x 105 cm |
102
x 74 x 120 cm |
packing
measurement |
109
x 80 x 121 cm |
109
x 80 x 136 cm |
N.W/G.W |
200/240
kgs |
205/250
kgs |
|
|
|
|
|
 |
|
|
