(Designed
for auto edge sanding of curved parts
as table top, closestool cover*) |
|
| |
| Features: |
•

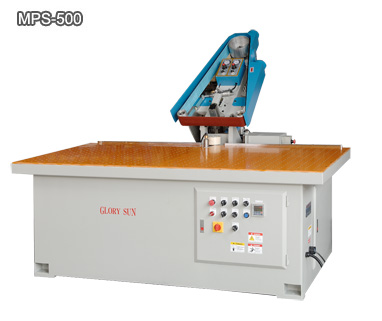

There are 2 model
for choice, one
is MPS-500, another
is MPS-500S. |
•
Complete cycle,
except loading and
unloading, is automatic
operated by a foot
switch control. |
•
Sanding head can
be adjusted forward/backward,
up/down, and tilted
- 15ﾟ~ +90ﾟ. |
•
Vacuum suction table
or floating ball
table offers fast
and convenient workpiece
loading and unloading. |
•
Adopted is the automatic
length tracking
to promise a high
processing accuracy. |
•
Sanding speed can
be changed in according
to different working
requirements. |
| •
Available is multiple
cyclical work, (1-9times).
|
|
Model
|
MPS-500
|
MPS-500S
|
sanding
thickness |
10~100
mm |
10~100
mm |
sanding
motor |
2HP
(200~1200RPM) |
2HP
(200~1200RPM) |
feed
wheel motor |
1/2HP
|
1/2HP
|
elevation
motor |
60W
|
60W
|
sanding
belt tilt angle |
60W
|
60W
|
sanding
belt oscillating motor
|
15W
|
15W
|
vacuum
pump motor |
50HZ
1.67HP 60HZ 2HP |
50HZ
1.67HP 60HZ 2HP |
air
cushion blower motor |
3HP
|
2HP
|
corner
sanding capacity |
10R
|
10R
|
flow
CFM |
50HZ
40m3 /hr 60HZ
48 m3 /hr |
50HZ
40 m3 /hr 60HZ
13 M/min |
sanding
belt speed (variable speed)
|
113~680
M/min |
113~680
M/min |
feed
speed (variable speed)
|
50HZ
11M/min 60HZ 13M/min |
50HZ
11M/min 60HZ 13M/min |
process
cycles |
1~9
time |
1~9
time |
sanding
belt dimension |
40~100(W)
x 2515(L) mm |
40~100(W)
x 2515(L) mm |
sanding
belt tilt angle |
-15ﾟ
~ +90ﾟ |
-15ﾟ
~ +90ﾟ |
worktable
dimension |
2040(L)
x 1020(W) mm |
1020(L)
x 1020(W) mm |
machine
measurement |
204
x 165 x 120 cm |
102
x 165 x 120 cm |
packing
measurement |
209
x 170 x 137 cm |
107
x 170 x 137 cm |
N.W/G.W
|
850/1000
kgs |
700/820
kgs |
|
|
|
|
|
 |
|
|
